ZZZ 196 windtightness set

ZZZ 196 windtightness set

  • Commercial Description

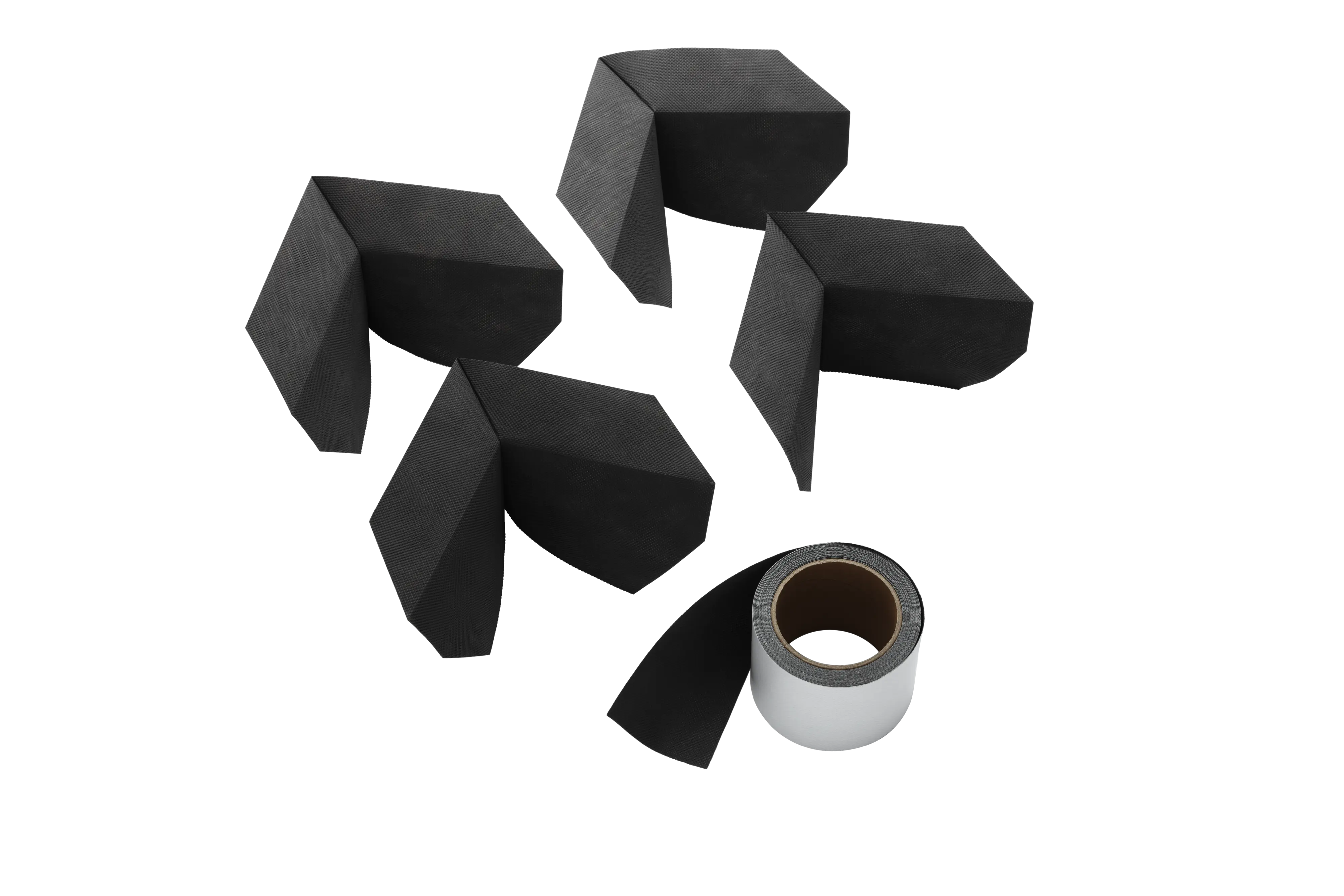

    ZZZ 196 wind tightness set is used with the Pro+ flashing set to meet stringent requirements for windtight installation. The set consist of pleated corner pieces and butyl for wind proofing of the corner when the existing underfelt is folded.

Feature/Technical Library/Labels/Benefits

For a windtight connection of the window to the roof covering
Suitable for all roof structures with an underroof
The BDX insulation and connection set is required. Cannot be combined with recessed flashings (EDJ/EKJ and EDN/EKN)

Installation Guide Asset

Feature/Technical Library/Products/Assets 1
VELUX CVP + ISD / ISD 2093, CVP + ZCE + ISD / ISD 2093
LINK

CAD drawing

Feature/Technical Library/Products/Assets 1
CAD Drawing
LINK

CE Marking Asset URL

Feature/Technical Library/Products/Assets 1
https://resources.velux.ie/ce-marking
LINK

Size Chart

Feature/Technical Library/Products/Assets 1
Poster with VELUX roof windows (product size chart) Standard roof windows and Special function roof windows
LINK
